Bristle-Vibrator Type BAG
for bristle-bundles, round- and flat-brushes, ceiling brushes, vibrator box, forming tool for bundle-production, etc.

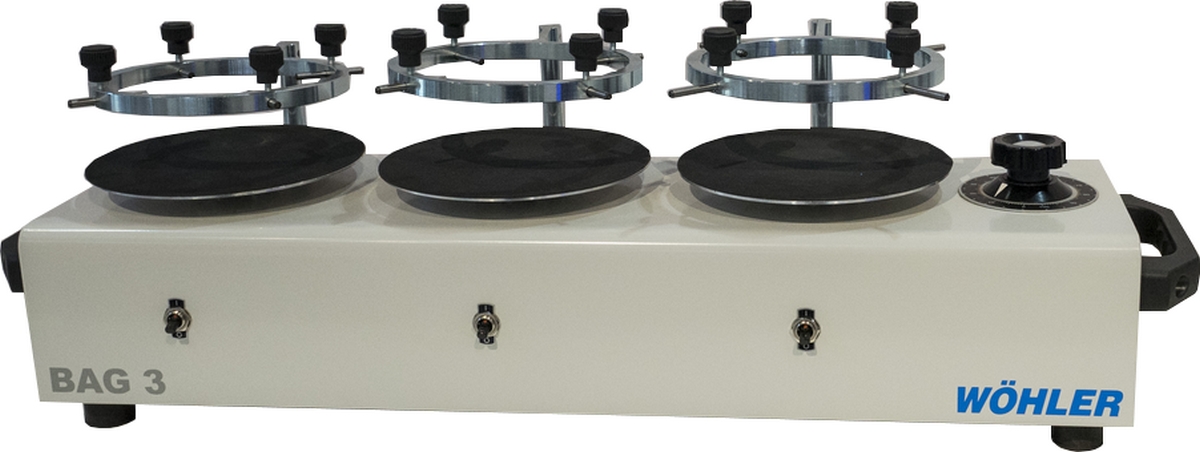

- Each device exists of 1, 2 or 3 electromagnetic vibrators (individually operable) as well as of a voltage variable transformer to adjust the intensity.
- The support rings are equipped with 4 positioning pins, which are adjustable to the diameter of the bristle-bundles and can be tipped up when not in use or when taking out the bundles.
Features
- maximum economy
- high flexibility
- simple operation
- high capacity
- production security
- very low cleaning time
Technical data
Diameter of the vibrator plates |
180 mm |
Diameter of the bristle bundle |
max. 140 mm |
Power supply |
230 V / 50 Hz |
Voltage regulating transformer |
0 - 100% |
Connecting cable w/protected earth plug |
length: 3 m |
Weight |
BAG-1R: 17 kg BAG-2R: 26 kg BAG-3R: 35 kg |
